Introduction

Voice monitoring lets you send completed provider-hosted calls into Okareo so they can be stored as monitoring datapoints and evaluated by the same monitor and check system used for the rest of your production traffic.

Okareo's voice monitoring flow is built around provider webhooks and per-project integrations. Each integration stores the provider-specific webhook credential, gives you a stable public webhook identifier, and lets Okareo resolve the correct project and organization from the integration itself instead of relying on user-supplied routing parameters.

Webhook authentication flows for supported providers are:

Provider	Authentication Flow
Twilio	Signature verification via stored secret
Retell	Signature verification via stored secret
Vapi	Okareo authentication via Okareo API key
SDK (Custom)	Okareo authentication via Okareo API key

At a high level, the webhook ingestion flow is:

1. A voice provider (or your custom caller) sends a post-call payload to an Okareo monitoring endpoint.
2. Okareo authenticates the request using either signature verification with a stored secret (Twilio, Retell) or Okareo API key authentication (Vapi, SDK Custom).
3. The call is normalized into a canonical conversation payload and queued for async processing.
4. Okareo creates one monitoring datapoint per conversation, preserving the full transcript and any stored audio reference.

Webhook-created voice datapoints are marked with:

• source = "webhook"
• provider = "twilio", "vapi", or "retell"

This makes provider-origin voice traffic easy to filter in dashboards, monitors, and downstream reporting.

Integration Secrets

Voice monitoring integrations are project-scoped and designed to be webhook security-first. Each secret-based integration has:

• a provider
• a non-secret public_id used in the webhook URL
• a provider-specific webhook_auth_type
• encrypted secret values stored by Okareo
• an integration status of active or disabled

The current integration flow supports create, rotate, delete, and status update operations. Basic offline configuration checks happen during create and rotate so malformed credentials are caught before the integration is used.

Twilio

Twilio monitoring uses Twilio's native webhook signature model. Authentication is accomplished by verifying the signature sent by your Twilio callback with a stored integration secret.

The recommended way to set up your webhook is described below:

• Identify the Twilio "Account SID" used to service your calls
• Get the "Auth Token" associated with this account
• In Okareo -> User & Org Settings -> Integrations -> Voice Monitoring, click on "New Twilio Integration" or "+ New Integration"
• Choose "Twilio", add the auth token, and click "Create Integration"

• The client.calls.create(...) request below places a call and configures Twilio to send the completed recording webhook to Okareo:

from twilio.rest import Client

ACCOUNT_SID = "<YOUR_TWILIO_ACCOUNT_SID>"
AUTH_TOKEN = "<YOUR_TWILIO_AUTH_TOKEN>"

client = Client(ACCOUNT_SID, AUTH_TOKEN)
client.calls.create(
    to="<TO_PHONE_NUMBER>",
    from="<FROM_PHONE_NUMBER>",
    ...
    record=True,
    recording_channels="dual",
    recording_status_callback="https://api.okareo.com/v0/voice/twilio/monitor/<PUBLIC_ID>?first_turn=assistant",
    recording_status_callback_event=["completed"]
)

tip

Since the Twilio recording callback does not provide a diarized transcript, Okareo will analyze the recording and create one for you.

To ensure the correct role is assigned to each turn, you can set the first_turn query param to either assistant (default) or user.

Retell

Retell monitoring uses Retell's webhook signing model with timestamp-aware verification. Authentication is verified using the Retell signature headers and request body with a stored integration secret.

The recommended way to set up your webhook is described below:

• Get your Retell API key with "Webhook" permissions (per Retell's Secure the Webhook docs)

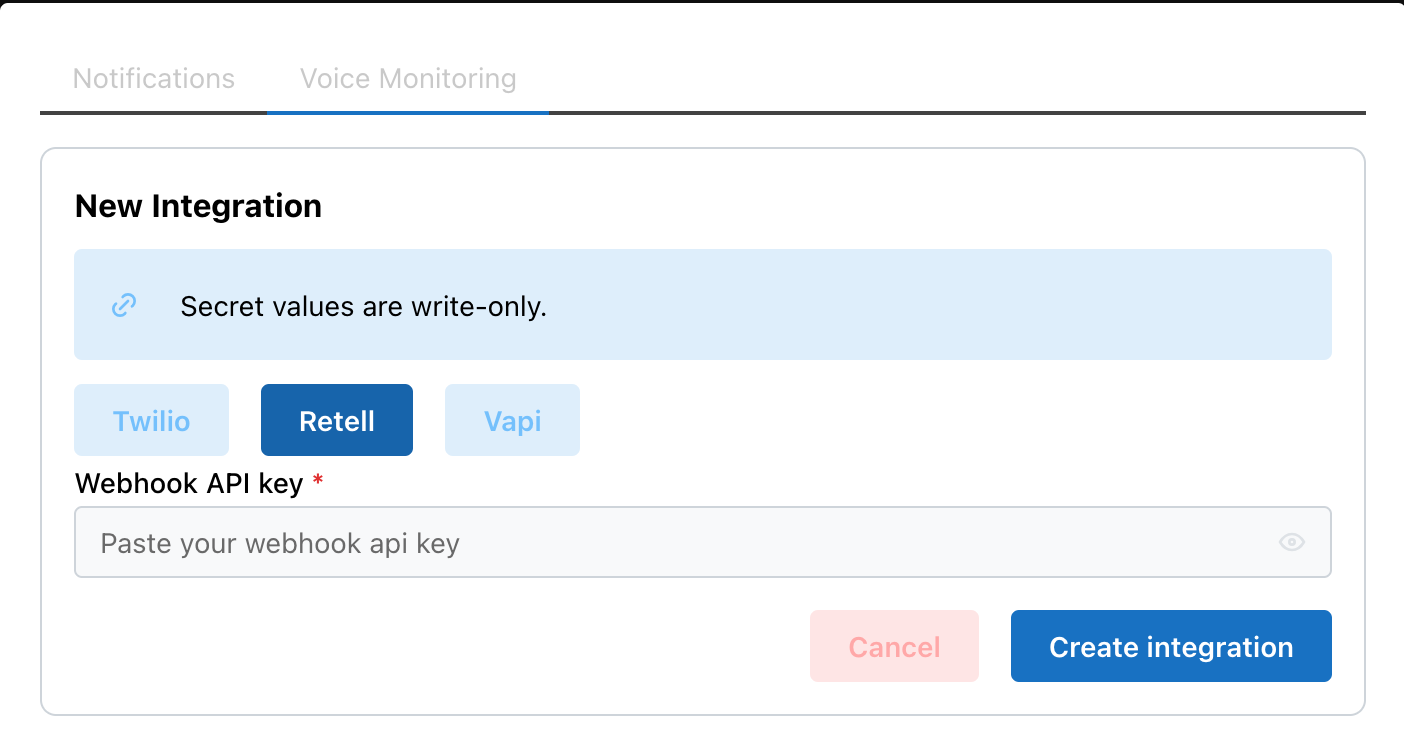

• In Okareo -> User & Org Settings -> Integrations -> Voice Monitoring, click on "New Retell Integration" or "+ New Integration"
• Choose "Retell", add the API key, and click "Create Integration"

• In Retell, you can configure the webhook at the account or agent level. The requests.patch(...) call below updates an existing agent so future calls send call_analyzed events to Okareo:

import requests

requests.patch(
    "https://api.retellai.com/update-agent/<AGENT_ID>",
    headers={"Authorization": "Bearer <RETELL_API_KEY>", "Content-Type": "application/json"},
    json={
        "webhook_url": "https://api.okareo.com/v0/voice/retell/monitor/<PUBLIC_ID>",
        "webhook_events": ["call_analyzed"],
    },
)

Calls to this agent will now send recordings to Okareo for analysis.

Vapi

Vapi monitoring is based on a provider-native credential store. Vapi allows you to create a Custom Credential that assigns your Okareo API key to the proper header.

The recommended way to set up your webhook is described below:

• Follow the instructions for Bearer Token Authentication to create a Custom Credential

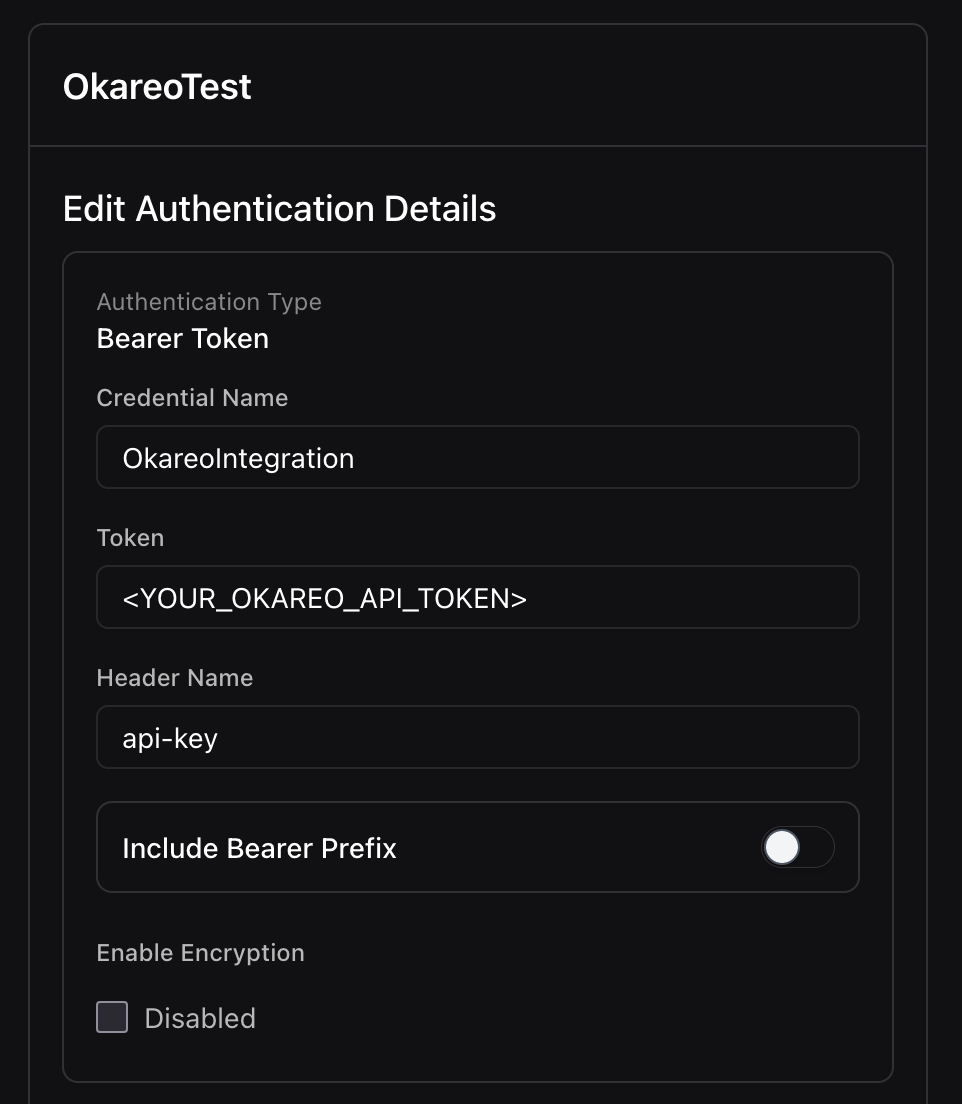

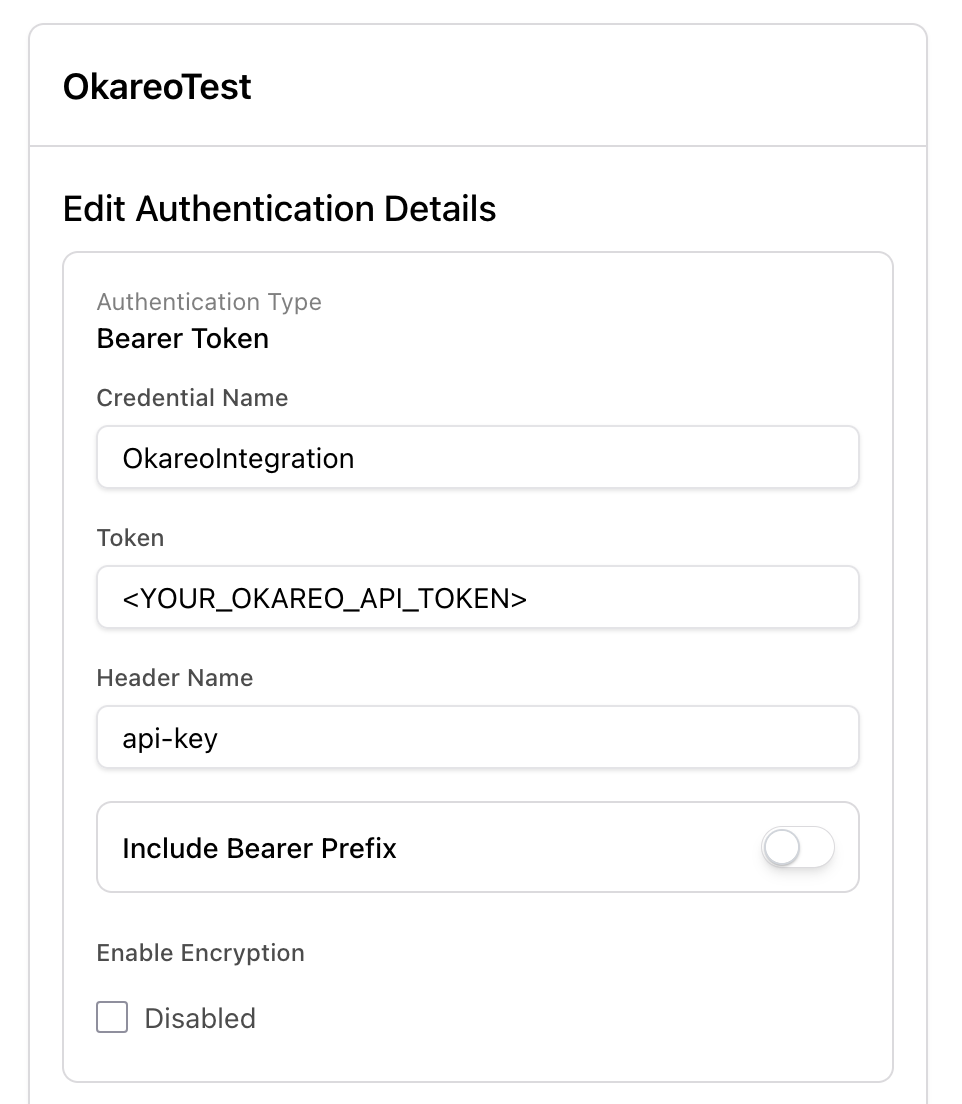

• Add your Okareo API key as the "Token", switch the "Header Name" to "api-key", and leave "Include Bearer Prefix" off. See the screenshot below for reference.

• Note the ID for your custom bearer token credential
• The requests.patch(...) call below updates an existing Vapi assistant so future calls send end-of-call-report server messages to Okareo using your credential. For example:

import requests

requests.patch(
    "https://api.vapi.ai/assistant/<ASSISTANT_ID>",
    headers={"Authorization": "Bearer <VAPI_API_KEY>", "Content-Type": "application/json"},
    json={
        "server": {
            "url": "https://api.okareo.com/v0/voice/vapi/monitor",
            "credentialId": "<CUSTOM_CREDENTIAL_ID>",
        },
        "serverMessages": ["end-of-call-report"],
    },
)

Calls to this Vapi agent will now send recordings to Okareo for analysis.

Custom (via Okareo SDK)

If your call provider is not listed above, you can use the Okareo Python SDK to ingest audio data for analysis.

Use ingest_conversations(...) when you already have a completed call and want Okareo to store it as a monitoring datapoint.

The okareo.ingest_conversations(...) call below sends one completed conversation directly to Okareo for asynchronous processing. It does not configure provider webhooks.

• Include a call_id for correlation.
• Provide either a pre-parsed transcript, an audio reference, or both.
• Add tags and metadata if you want monitors or downstream workflows to filter these calls later.

import base64

from okareo import Okareo


okareo = Okareo(api_key="<OKAREO_API_KEY>")

with open("./call.mp3", "rb") as f:
    audio_b64 = base64.b64encode(f.read()).decode("utf-8")

response = okareo.ingest_conversations(
    project_id="<PROJECT_ID>",
    conversations=[
        {
            "source_platform": "custom",
            "call_id": "call-123",
            "audio": {
                "type": "inline_b64",
                "inline_b64": audio_b64,
            },
            "transcript": [
                {
                    "role": "user",
                    "content": "Hi, I need to update my billing address.",
                    "timestamp_ms": 0,
                },
                {
                    "role": "assistant",
                    "content": "I can help with that. What is the new address?",
                    "timestamp_ms": 1200,
                },
            ],
            "tags": ["support", "billing", "custom-provider"],
            "metadata": {
                "customer_id": "cust_123",
                "provider_name": "my-dialer",
            },
        }
    ],
)

print(response)

Okareo returns an accepted response immediately and processes the conversation asynchronously. After processing completes, you can find the resulting datapoint by searching for the call_id as the context_token.

If you do not already have a transcript, omit the transcript field and send only audio. Set diarization=True to have Okareo transcribe the recording and separate turns by speaker.
